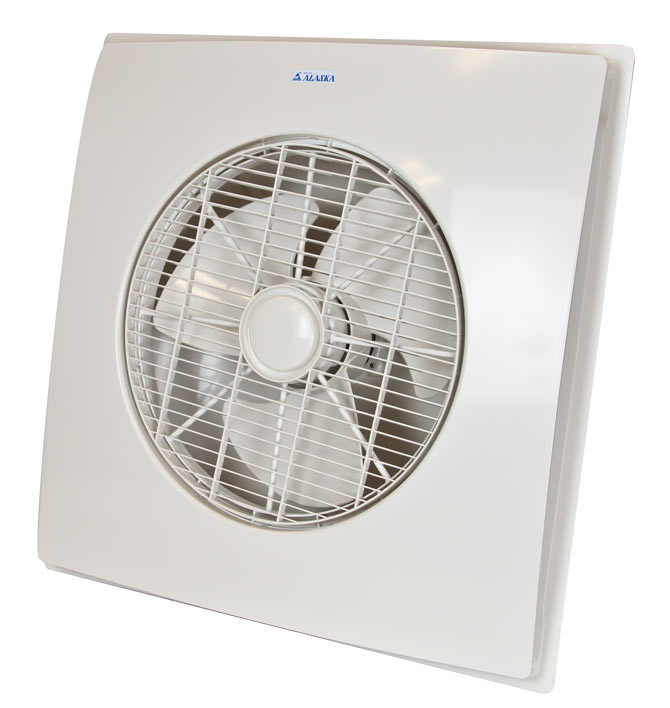

Ceiling Tile Fan

This innovative Tile Fan is specifically designed for suspended ceilings. This is a perfect alternative to conventional ceiling fans when head room is important. We recommend to install in 8' - 10' ceilings for maximum air circulation.

Remote can control additional slave fans.

From small rooms to basements, to office centers, this Tile Fan can be quickly installed. Simply remove the existing ceiling tile and replace with the fan unit. Connect normal household current to the electrical box and enjoy the energy savings. (electrical experience is required)

Ceiling Tile Fan Unit comes complete with remote and batteries and convenient wall bracket remote holder. The face swings down for easy cleaning. Back is sealed. There is no air exchange between the room and the space above the ceiling grid.

Additional Information

Size: 23 3/4" x 23 3/4"
Height: 7"
Weight: 11lbs
Voltage: 110/120 AC

Quick Facts

• Fits standard 2x2 ceiling grid
• Can be used in 2x4 grid when used with 2' divider
• Simple 2 wire electrical hook up
• UL Listed
• 3 Speeds - Rotating Grill - All controlled by the remote
• Remote control - Controls unlimited fan units
• Rotating airflow diffuser
• Minimum of 8" depth clearance needed
• UL Listed
• Fan CFM:
  Low: 469.6
  Med: 704.4
  Hi: 880.5
