Crown Molding Installation

Getting Started
Installation of crown molding may seem like a daunting task, but with a little guidance and very little practice just about anyone can do a praiseworthy job installing crown molding. This guide will cover the basics of cutting and installing crown molding. As with any task, there are various ways to cut and install crown molding and if you have a different method that you are comfortable with, then by all means use it. You use our products in much the same way as you would other crown moldings on the market.

Materials & Tools Needed-

  • Hammer / Finish Nails / Nail Set / Brad Gun
  • Miter Saw / Miter Box
  • Caulking (paintable latex)
  • Adhesive / Caulking Gun
  • Tape Measure / Pencil
  • Angle Finder / Protractor
  • Sandpaper- Medium Grit
  • Utility Knife
  • Mineral Spirits / Rag
  • Paint / Paint Brush
Things to Consider Before you Order

How Many Pieces Should I Order?
Calculating How Many Pieces are Needed. A step by step guide.

Measuring for your molding project

What size of molding to use.
When looking at our crown molding you will notice a measurement called "Breadth". This is the size of the facing of the molding and can be used to determine how large you want the molding to appear on your ceiling. Here are some general guidelines that are all based on my opinion (so feel free to choose your own size even if it is outside my figures):

Small-Medium Room
8' Ceiling: 2" - 5" Breadth
10' Ceiling: 4" - 8" Breadth
12' Ceiling: 6" - 10" Breadth
14+' Ceiling: 8" or wider Breadth

Large Room
8' Ceiling: 4" - 7" Breadth
10' Ceiling: 5" - 10" Breadth
12' Ceiling: 7" - 11" Breadth
14+' Ceiling: 9" or wider Breadth

View our crown molding.

Difficulty to Install
One thing to consider when you install your crown molding is how easy or difficult it will be to install. A professional installer shouldn't have a problem with any of the moldings, but if you are a do-it-yourselfer then this is definitely a consideration. Most 12" miter saws will only cut through a molding that is about 6" in breadth. You can normally cut moldings that are a few inches larger than that on your saw by hand finishing each cut with a small coping saw. For moldings that are too larger to fit on your miter saw you would need to Build a Miter Box.

Selecting Your Crown Molding
To help in selecting the crown molding that you want to install we highly recommend ordering Samples. The styles that are shown on the website are clear but if you are unsure of the size that will look best in your room then getting a sample will help you pick the perfect size.
Measuring
When installing, you will notice that on an inside corner the bottom of the molding will go all the way into the corner while the top of the molding will be several inches out from the corner. Similarly, on an outside corner it is the bottom of the molding that comes even with the corner while the top of the molding extends out beyond the corner. For this reason, when you take a measurement along the wall to determine how long the piece needs to be, you should always mark the molding on the bottom edge and make your cut using that mark. If you mark the molding on the top, your piece will not be the correct length.
Painting
Your molding comes pre-primed and ready for paint. As with any product, test your paint on a small area to make sure there are no incompatibility issues with the paint and pre-applied primer. Most home latex paints work great. We do not recommend combo paints that have primer and paint all in one coat. There have been reports of these paints not drying and staying tacky. Test a spot before you commit.

As with any millwork products, some prep work such as light sanding may be necessary.

Pro-Tip
It is easier to paint the molding before installation. Working at waist level is always better than working over your head. Paint your molding before you start the installation process. Then touch up the imperfections after you are done with the install.

Additional Resources:
Finishing Tips
Faux Finishing Wood Grain
Corner Types
There are two types of corners that we will be referencing - inside and outside corners. Take a look at the image to the right to identify the different corner types.

We’ll also be referring to the corner pieces as a left or right corner piece. They are referenced by what side they would be on when installed.

Additional Resources:

A step by step guide of several different corners
Pre-made corners
Angles other than 90°
Most rooms consist of four 90 degree corners. That’s why most of our cuts are at 45 degrees, because half of 90 is 45. Very rarely do homes have corners that are truly a 90 degree angle. If you use an angle finder you will be surprised that you may have 88 to 92 degree corners. Sometimes less or more! But don’t worry, there’s nothing wrong with your house, it’s just the nature of construction and the materials used. While cutting your corners at 45° will usually yield perfectly acceptable results, using an angle finder will produce the perfect corner.

When using an angle finder, subtract your reading from 180 and then divide by 2 to get the cut angle. If I have 2 walls that come together at an angle, and my angle finder tells me it’s 135 degrees, I subtract 135 from 180. That gives me 45. Half of 45 is 22.5. That would be my cut angle for each side of an inside corner.

180 Minus the Angle Reading = X
X Divided by 2 = Cut angle for a inside or outside corner

Whether you have a 90° corner or some other angle, the cutting process is the same. The only change you will need to make is the miter angle of your saw.

Additional Resources:
A step by step guide of several different corners
Vaulted Ceilings
Installation - Where to Start
When installing a crown molding that has a design you can make the design line up well in every corner except the point where your last piece of molding meets with the first piece. For this reason, start in the least visible corner and work your way around the room to finish back in that least visible corner. For plain molding, the ending point is not important so you can start in whichever part of the room you feel most comfortable.
Securing The Molding to the Wall
Before mounting the molding to the wall, apply a 1/4” bead of polyurethane adhesive to the top and bottom of the molding where it will contact the ceiling and wall. When you are joining moldings together make sure to apply adhesive between the touching sides of the molding. This will insure that your molding joints will not separate as the house expands and contracts. Use mineral spirits and a rag to clean up any drips.

Use small finishing nails or a powered brad gun to secure the molding while the adhesive sets. Make sure to use a nail punch to sink your finish nails below the surface. If you are using a powered brad gun, adjust the power so that the gun drives the brads just below the molding surface.

Don’t force the molding to conform to the unevenness of the wall. No wall is perfectly straight and by forcing the molding to conform you will highlight the walls condition. Let the molding run naturally straight and use painters caulk to fill up any holes or gaps.

USE ADHESIVE!
It is necessary to use adhesive between the joints of the molding. This prevents the molding from separating at the joints when the house walls expand and contract.
Last Piece on a Wall
For a tight fit and seams, cut the last piece that is going to be on a wall just a little long. 1/16 to 1/8 of an inch is usually enough to allow you to snap that piece in place making sure all your joints stay nice and tight.

Pro-Tip
When two pieces of molding are being joined together in a run (end to end) leave the last two feet of the open end of the installed molding loose so you can have some alignment room when you join the next piece.

Additional Resources:
Pro Installation Tips
Cutting
If installing using the method below, you only need a standard miter saw. If you are using a compound miter saw you will not need to use the bevel feature.

Imagine that the base of the saw is your ceiling and put the edge of the molding that will touch the ceiling flat against the base of the saw pressed up against the fence. The edge of the molding that will touch the wall should be facing away from the fence if you have it in the correct position.

While holding the molding at the correct angle, align the blade with your measurement and make your cut. If in doubt, cut the molding a little long. You can always go back and shave a little off the end.

Pro-Tip
Large profile crown moldings will require the use of a miter box. Click here for instructions on building a miter box. PDF file.

Inside Corner-Left Piece -
When you are at your miter saw have the long part of the molding extend out to the left. Move the saw angle to your right to the 45° mark for a 90° corner or your calculated angle for an angled corner. Make sure the top of the molding is on the saw deck and the bottom is facing you. Hold the molding at the correct angle and make your cut.
Inside Corner-Right Piece -
When you are at your miter saw have the long part of the molding extend out to the right. Move the saw angle to your left to the 45° mark for a 90° corner or your calculated angle for an angled corner. Make sure the top of the molding is on the saw deck and the bottom is facing you. Hold the molding at the correct angle and make your cut.
Outside Corner-Left Piece -
When you are at your miter saw have the long part of the molding extend out to the left. Move the saw angle to your left to the 45° mark for a 90° corner or your calculated angle for an angled corner. Make sure the top of the molding is on the saw deck and the bottom is facing you. Hold the molding at the correct angle and make your cut.
Outside Corner-Right Piece -
When you are at your miter saw have the long part of the molding extend out to the right. Move the saw angle to your right to the 45° mark for a 90° corner or your calculated angle for an angled corner. Make sure the top of the molding is on the saw deck and the bottom is facing you. Hold the molding at the correct angle and make your cut.
Installing A Return
Most moldings will go around the whole room but sometimes we want the molding to just end. An elegant way of doing that is to create a return. Cut an outside corner on the long piece and one on a small piece of scrap (that is opposite your long piece cut). Then make a straight cut that is lined up with the bottom point of your short piece.

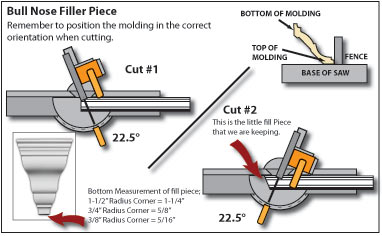

Installing Around A Bull Nose Corner
It looks more professional to create a transition piece for going around a bull nose corner. On 90 degree corners the miter angle is set to 22.5 degrees for all the corners. The transition piece should be pie shaped with the length of the base of the piece equal to 83% of the size of the radius of the bullnose. For a standard 3/4” bullnose the bottom of the molding should be 5/8”. (See Video above at the 11:25 sec mark)
Finishing Up
Now that you have all of your molding installed, spend a little time with some latex painter’s caulk and fill in all those little seams and nail holes. Run a bead of caulk around the entire job to make it look nice and neat. Latex painters caulk cleans up with water and is very easy to smooth out with your finger.

Pro-Tips
When you install crown molding you should use a finish nail gun with 1 1/4" brads and an adhesive. By using an adhesive with the polyurethane moldings it makes it easier to install and you don't need to use as many nails (so less finish work at the end). Additional Installation Tips.

Here are some tips from my crown molding installation that are good to remember:

  • Find a helper -- installing crown molding with 2 people is much quicker!
  • Prior to installation, mark the wall around the entire room where the bottom of the molding will reach.
  • Put adhesive on both edges of the molding (ceiling and wall) and on the seam between each piece.
  • Cut 1/8" off the ends of the molding when doing a butt joint to create a clean seam.
  • Use a knife to remove the back side of the bottom tip of the molding on an inside corner.
  • When nailing, shoot the brad into a concave part of the molding if possible.
  • Don't sweat the small mistakes -- caulking works wonders!
